Durable Cast Steel Lifting Block 2-13kg with Multi-Sheave Options for Transmission Line Work
Product Overview

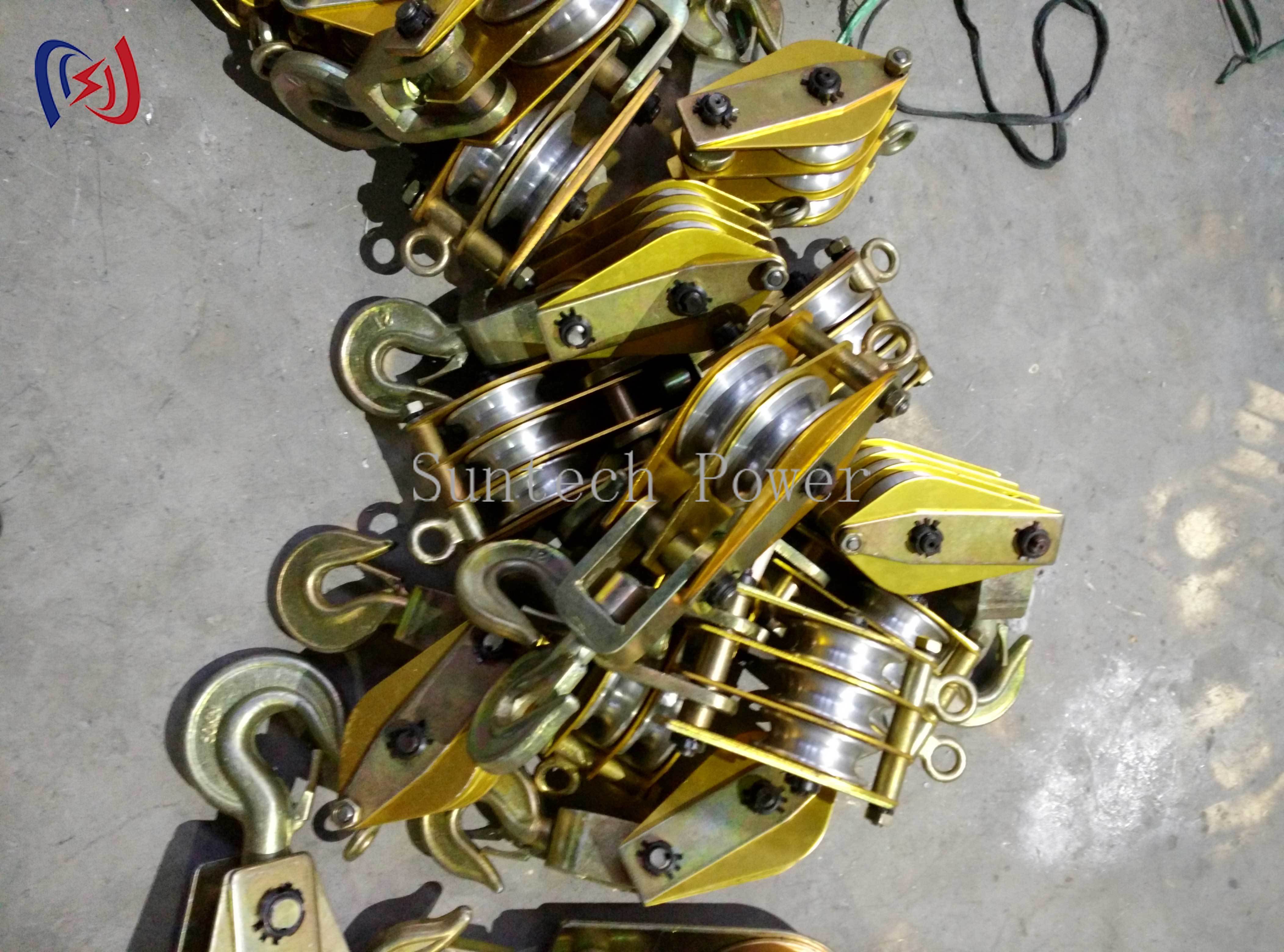

This casting steel wire rope pulley block features robust steel construction for heavy-duty hoisting applications. Available with 1-3 sheaves, rated load from 10KN to 150KN. Hanger includes hook type, plate type, and ring type. Suitable for tower assembly and erection, line construction hoist devices and other hoist operations.
Technical Specifications
|
Item No.
|
Model
|
Sheaves
|
Rated Load (kN)
|
Roller Dia×W (mm)
|
Max Rope (mm)
|
Weight (kg)
|
|
11301
|
QHL1x1
|
1
|
10
|
100×31
|
8
|
2
|
|
11302
|
QHL1x2
|
2
|
|
80×27
|
6
|
2
|
|
11303
|
QHL1x3
|
3
|
|
80×27
|
6
|
2
|
|
11311
|
QHL2x1
|
1
|
20
|
120×35
|
10
|
3
|
|
11312
|
QHL2x2
|
2
|
|
100×31
|
8
|
3
|
|
11313
|
QHL2x3
|
3
|
|
100×31
|
8
|
4
|
|
11321
|
QHL3x1
|
1
|
30
|
150×39
|
11
|
4
|
|
11322
|
QHL3x2
|
2
|
|
120×35
|
10
|
4
|
|
11323
|
QHL3x3
|
3
|
|
100×31
|
8
|
5
|
|
11331
|
QHL5x1
|
1
|
50
|
166×40
|
13
|
6
|
|
11332
|
QHL5x2
|
2
|
|
150×39
|
11
|
6
|
|
11333
|
QHL5x3
|
3
|
|
120×35
|
10
|
7
|
|
11341
|
QHL8x1
|
1
|
80
|
205×49
|
18
|
9
|
|
11342
|
QHL8x2
|
2
|
|
166×40
|
13
|
9
|
|
11343
|
QHL8x3
|
3
|
|
150×39
|
11
|
10
|
|
11351
|
QHL10x1
|
1
|
100
|
246×60
|
20
|
12
|
|
11352
|
QHL10x2
|
2
|
|
166×40
|
13
|
12
|
|
11353
|
QHL10x3
|
3
|
|
150×39
|
11
|
13
|
Applications
· Tower assembly and erection
· Line construction hoist devices
· Hoist operations and heavy lifting
· Power construction projects
· Utility maintenance work
Product Advantages
· Robust Steel Construction — Cast steel construction provides maximum durability and load capacity for the most demanding jobs.
· Wide Load Range — 10KN to 150KN across 18 models with 1-3 sheaves.
· Multiple Hanger Types — Hook, plate, and ring type hangers available for different rigging needs.
· Proven Versatility — Suitable for tower erection, line construction, and general hoisting operations.
· Ball Bearing Mounted — Smooth rotation for efficient hoisting with reduced friction.
Frequently Asked Questions (FAQ)
Q: Material?
A: Casting steel construction for maximum strength and durability.
Q: Load range?
A: 10KN to 150KN, 18 models with 1-3 sheaves.
Q: Hanger types?
A: Hook type, plate type, and ring type. Specify when ordering.
Q: Applications?
A: Tower assembly, line construction hoisting, general lifting.
Q: Weight range?
A: 2KG to 13KG.
