Multi-Sheave Cable Pulley 450mm Bend Radius for Large Cable Protection During Pulling
Product Overview

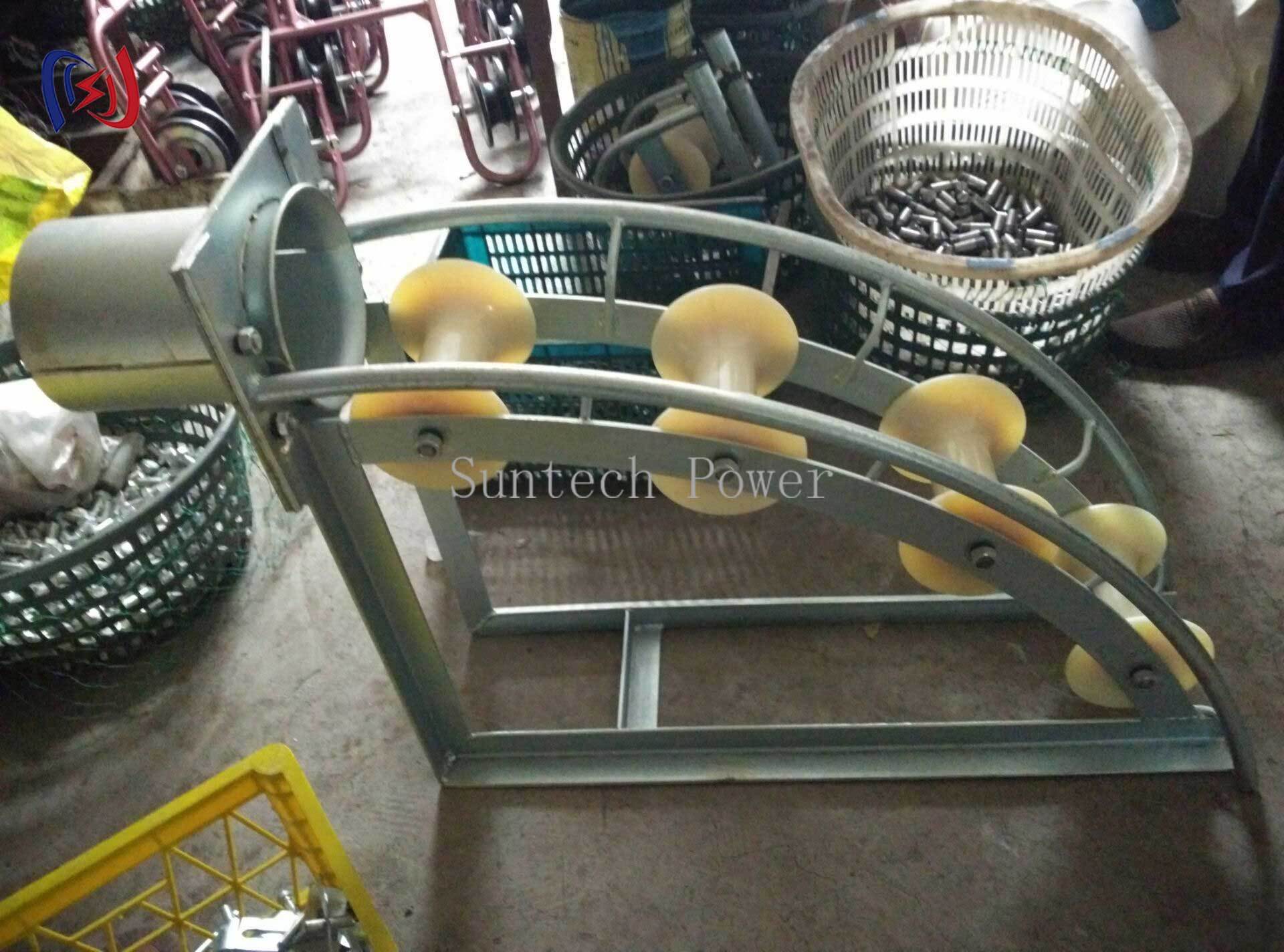

This multi-sheave cable roller features 3 or 4 MC nylon wheels with 450mm curvature radius, designed for laying cables on the ground or cable bridge. Suitable for straight line and corner use. Can be disassembled as individual rollers. Features flexible rotation, lockable positioning, and smooth surface. Maximum cable diameter 200mm.
Technical Specifications
|
Item No.
|
Model
|
Sheaves
|
Tube Dia (mm)
|
Weight (kg)
|
|
21251
|
SHL80C
|
3
|
80
|
17.0
|
|
21252
|
SHL90C
|
3
|
90
|
18.0
|
|
21253
|
SHL100C
|
3
|
100
|
20.0
|
|
21254
|
SHL130C
|
3
|
130
|
20.5
|
|
21255
|
SHL150C
|
3
|
150
|
21.0
|
|
21255A
|
SHL180C
|
3
|
180
|
22.0
|
|
21256
|
SHL200C
|
3
|
200
|
23.0
|
|
21261
|
SHL80C1
|
4
|
80
|
24.0
|
|
21262
|
SHL90C1
|
4
|
90
|
25.0
|
|
21263
|
SHL100C1
|
4
|
100
|
25.0
|
|
21264
|
SHL130C1
|
4
|
130
|
25.0
|
|
21265
|
SHL150C1
|
4
|
150
|
26.0
|
|
21265A
|
SHL180C1
|
4
|
180
|
27.0
|
|
21266
|
SHL200C1
|
4
|
200
|
30.5
|
Applications
· Laying cables on ground or cable trays
· Straight line and corner cable installation
· Manhole and underground cable protection
· Large cable diameter installations
· Long distance cable pulling requiring multiple support points
Product Advantages
· Large Curvature Radius — 450mm curvature radius protects cables from sharp bend damage during installation.
· Multi-Roller Design — 3 or 4 roller configurations provide stable cable support and smooth tracking.
· Flexible Rotation — Ball bearing mounted wheels rotate flexibly, reducing friction and labor.
· Lockable Positioning — Can be locked at tube orifice at arbitrary angle for optimal cable alignment.
· Modular Design — Can be disassembled into individual rollers for flexible deployment.
Frequently Asked Questions (FAQ)
Q: What is the curvature radius?
A: 450mm, which protects cables from sharp bend damage.
Q: How many rollers?
A: 3 or 4 roller options depending on model.
Q: Tube diameter range?
A: 80mm to 200mm across 14 models.
Q: Are they lockable?
A: Yes, can be locked in position at the tube orifice.
Q: Can they be disassembled?
A: Yes, can be separated into individual rollers for flexible use.
